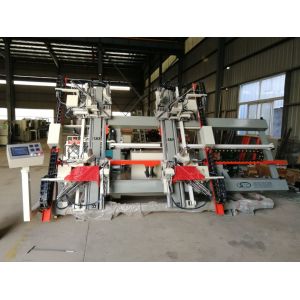

SHP4-CNC-3000A CNC Vertical Four-Point Welder

Cnc Four Point Welding Machine For Pvc / Upvc Window , Stable Operation

CNC Vertical PVC Window Four Point Welding Machine

CNC Four-Point Welding Machine / PVC Window Welding Machine

Quick Details

• Place of Origin: China (Mainland)
• Brand Name: SAINT BEST
• Model Number: SBT-SHP4-3000A
• After-sales Service Provided: Engineers available to service machinery overseas
• Air Pressure:: 0.5MPa~0.8MPa
• Air Consumption:: 80L/min
• Input Voltage:: 380V/220V 50Hz
• Input Power:: 7KW
• Welding Height:: 25mm~160mm
• Max. Welding Width:: 120mm
• Welding Range::350mmx350mm~1800mmx3000mm
• Overall Dimension::5000mmx2000mmx2720mm
• Weight:: 2650kg

Packaging & Delivery

Technical Parameter:

Model SHP4-CNC-3000A

Input voltage 220V 3P 60HZ

Input power 7Kw

Air pressure 0.4~0.6MPa

Air consumption 200L/min

Welding height 25~160mm

Welding width ≤130mm

Welding range 400×400~1800×3000mm

Overall dimension 5000×2000×2860mm

◎ Automatic welding head positioning.

◎The machine heads automatically back to the original position,easy operation.

◎Feeding system adopts imported linear guide pair,with high accuracy and smooth working.

◎Size tolerance compensation is available to increase welding precision.

◎No need to change the Back plates.Common profile fixture along with the machine can meet various height profiles' processing requirement.

◎Back plates are convenient to change,when connecting joints,the two clamping boards feed symmetrically results parallel welding, increasing the welding strength.

• Imported computer control system,high precise welding,easy operation and high stability.

Equipment Features
--One working cycle, one frame, of with double layer, one working cycle, two frames.
--Common profile fixture along with the machine can meet various height profiles’ processing requirement.
--Imported linear guide track system kept the running stable.
--Unique technique keep the high corner strength.
Main Specification and Technical Parameter
